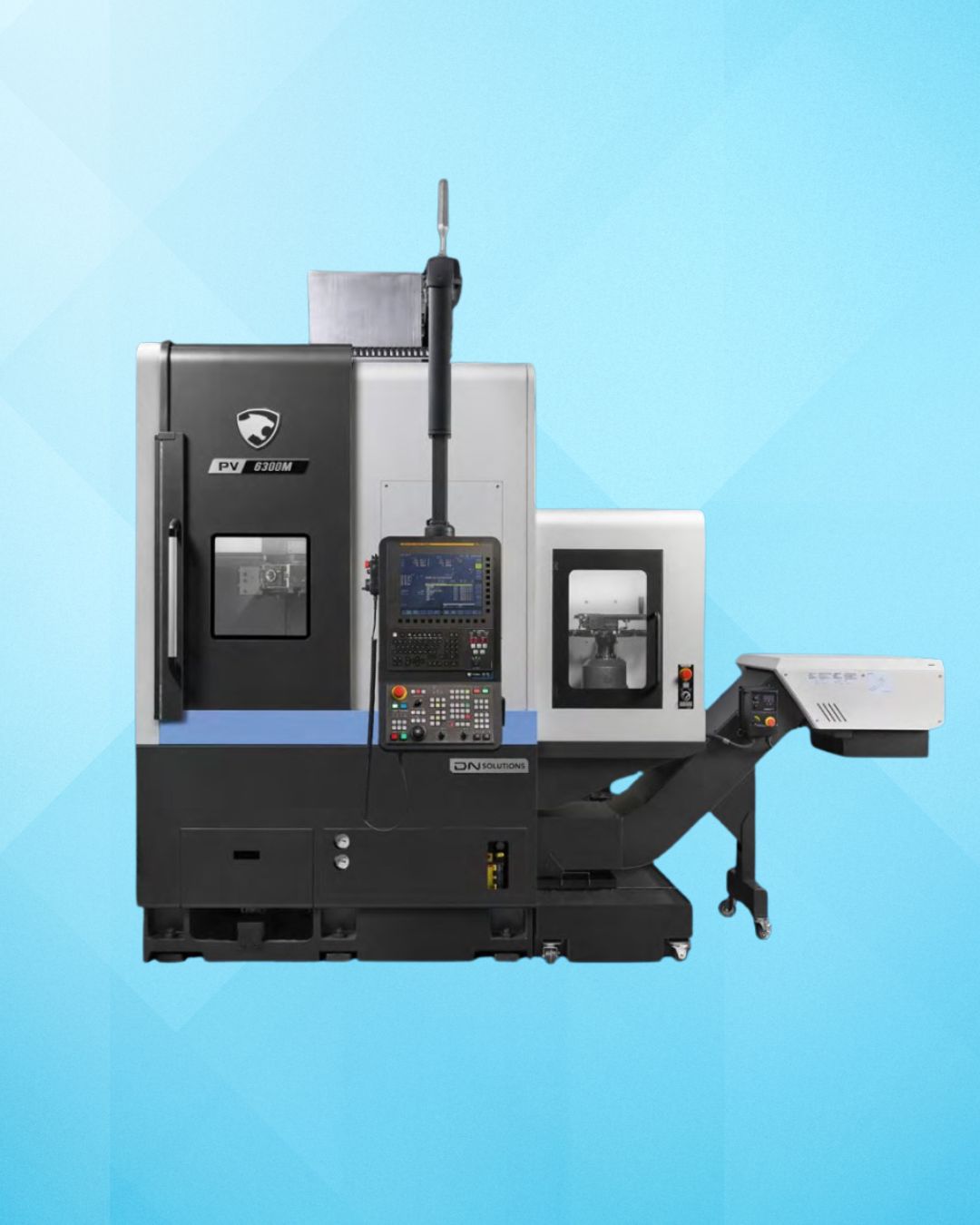

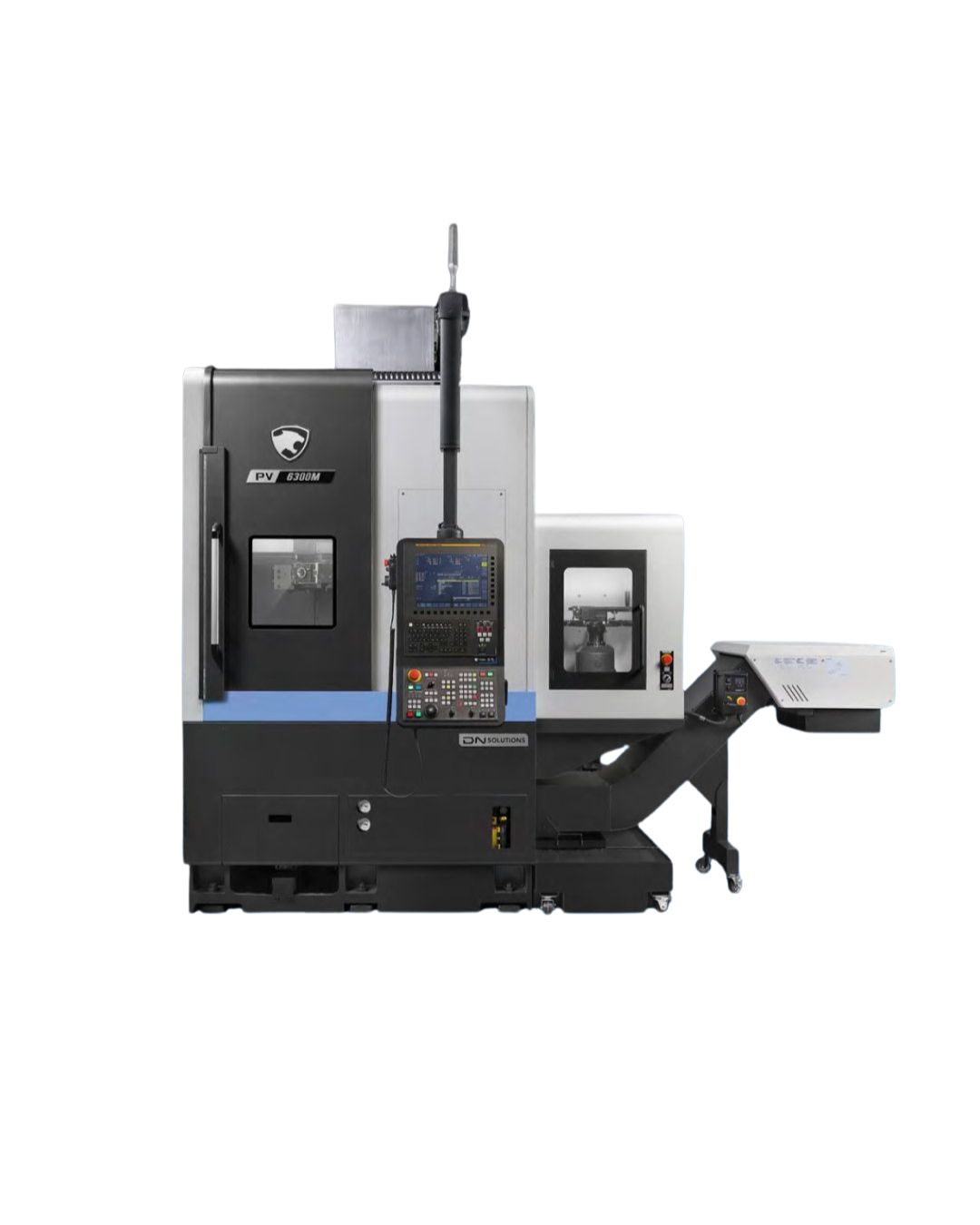

PV 6300 series
High-productivity 15-inch / 18-inch class medium-duty vertical turning centerThe PV6300 series is a high-productivity vertical turning center developed with DN Solutions’ latest VTC technology. It features an integrated column box guide structure and a reinforced bed frame, providing a rigid construction capable of withstanding heavy-duty cutting. With the highest machining capacity in its class, it offers customers enhanced versatility in operation.
Highlights
Large Work Zone
- Max. chuck size: 18inch
- Max. turning diameter of 630mm

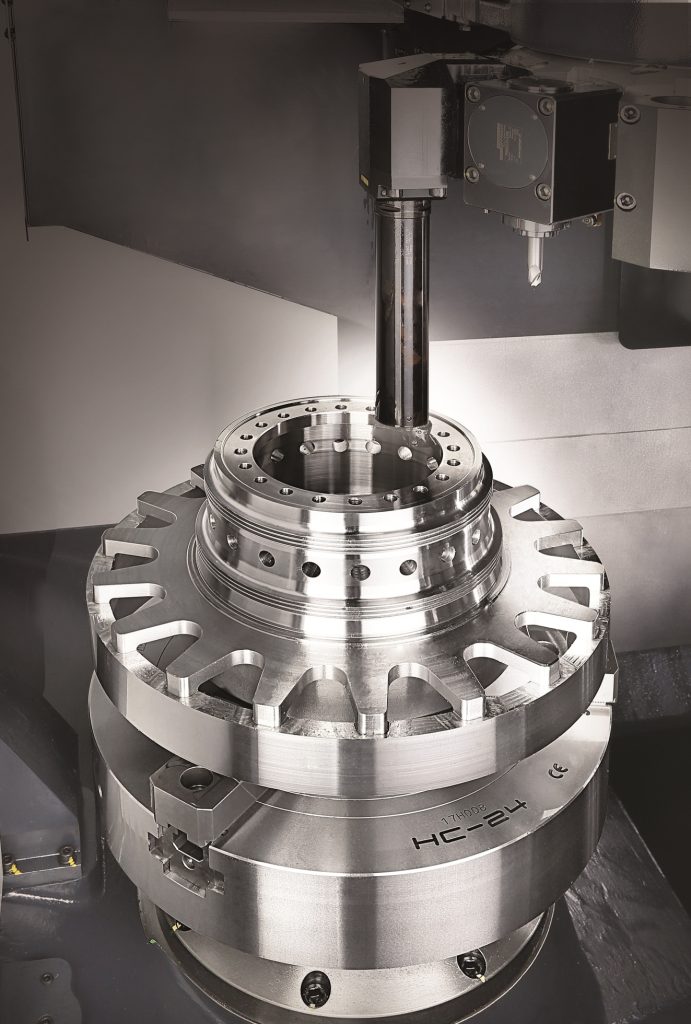

Maximum Machining Capability in its Class
- Spindle motor: 37kW, torque: 1638N·m

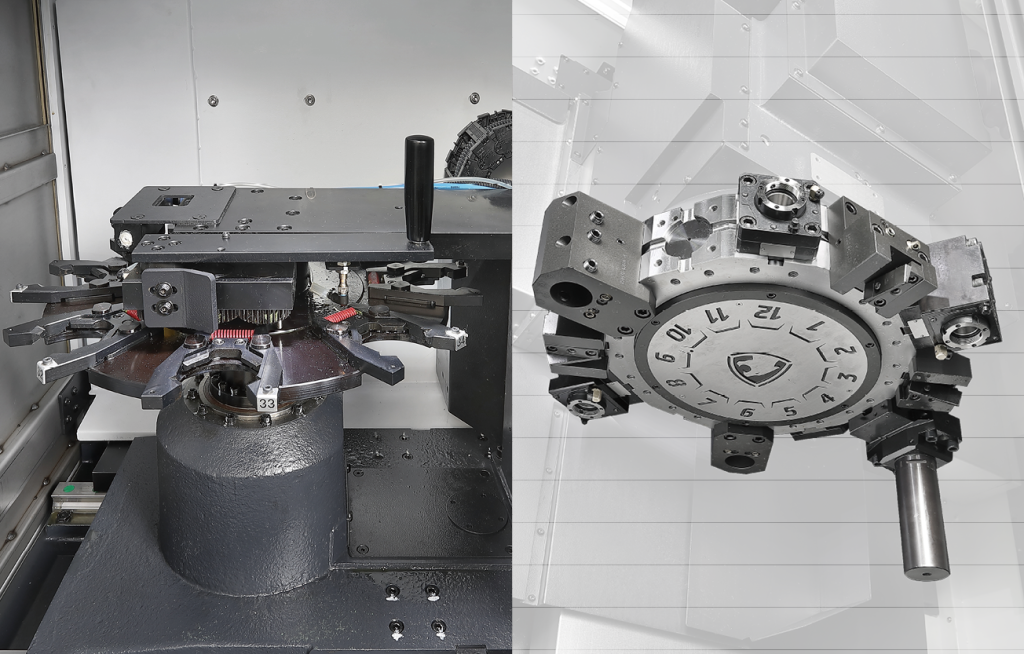

- Equipped with a high-reliability servo-driven turret to maintain high accuracy even during long machining operations
- Increased turret disc thickness enables more powerful cutting
- Shared use of 2-/3-axis turning holders improves convenience

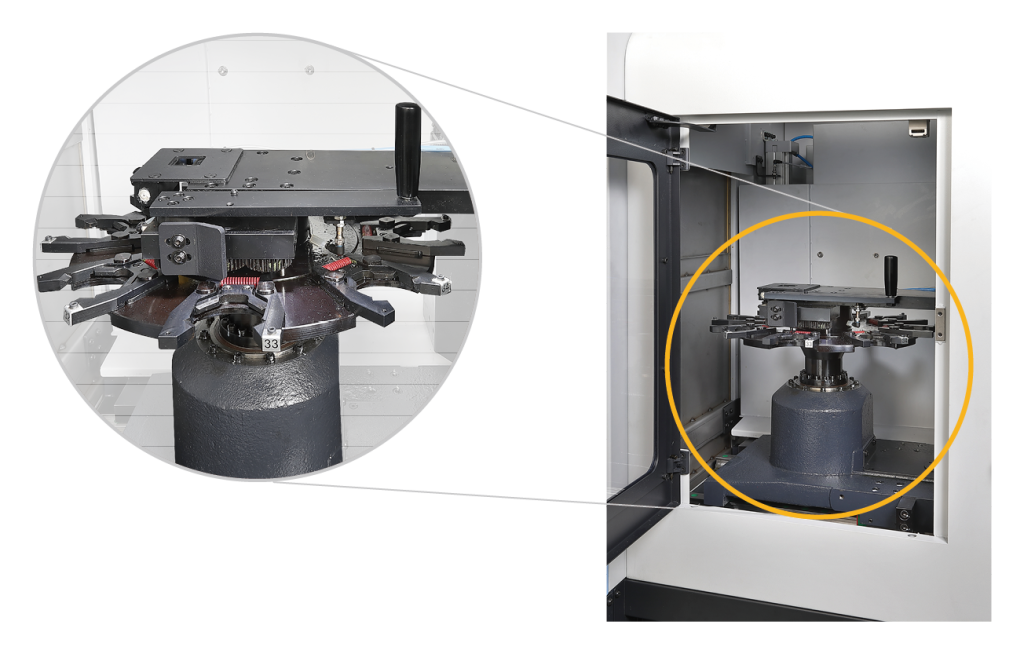

- Automatic tool changer (option)

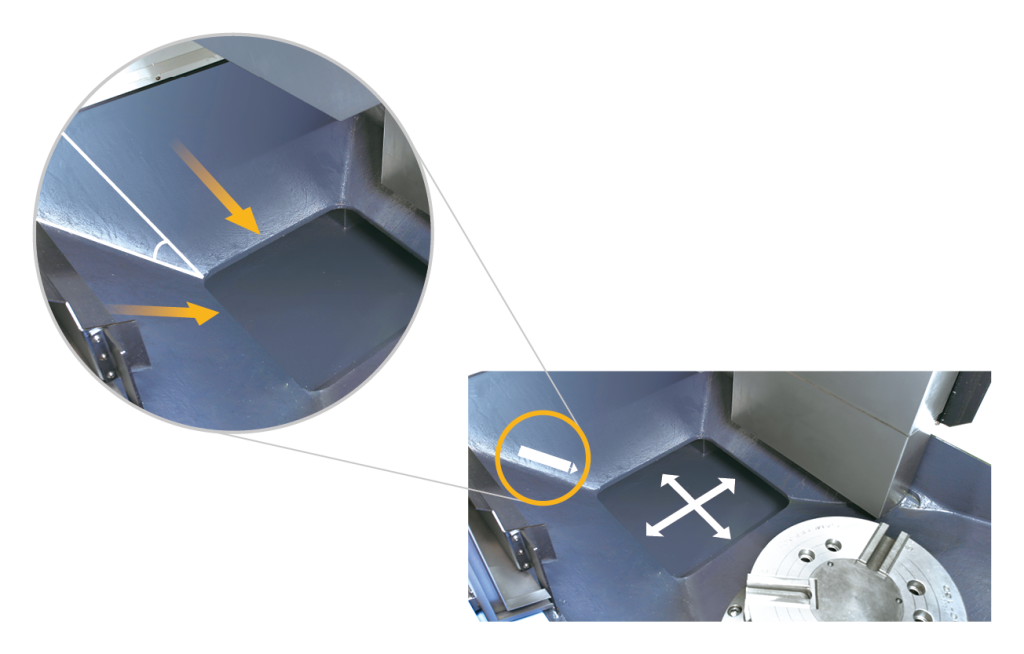

Improved convenience with smooth chip evacuation
- Designed with a bed structure that facilitates chip evacuation, enhancing customer convenience
- Applied a user-centered design with an operator panel that allows easy height adjustment and offers a choice between pendant-type and fixed-type configurations
Automation-compatible equipment (Option)
- Automatic Tool Changer (ATC)
- Automatic front and side doors
- Robot interface prepared
- Capto tool flushing applied as standard when ATC is selected
- Tool monitoring system applied as standard
- Improved magazine control panel design with additional internal lighting

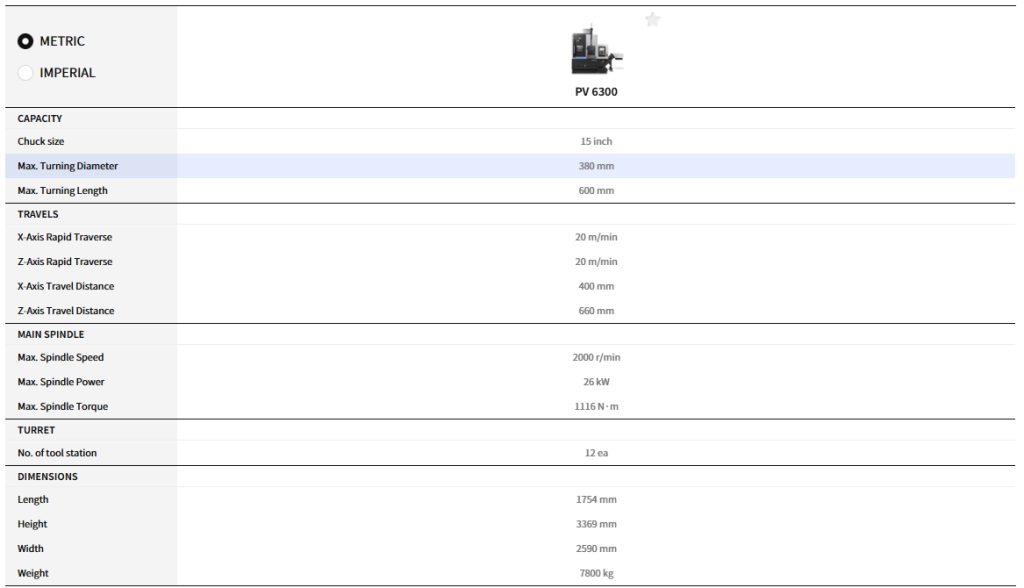

Product Specifications
- These specifications are based on the global standard and may differ by region.
